Are You Searching for plans for a trailer online? There are various plans available online that offer flatbed trailer, dump trailer and car hauler designs tailored to meet different needs and load capacities.
To select an effective trailer plan, it is important to understand your priorities and anticipated uses for it. Storage may also be important as well as special amenities like fold-up tongues.

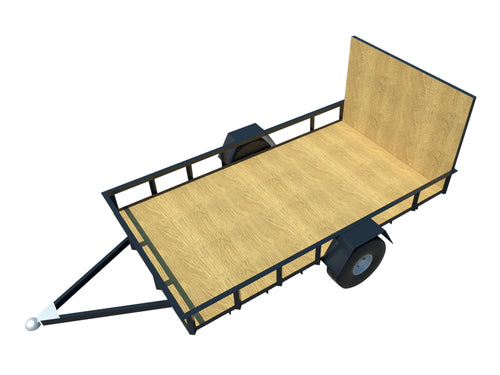

Utility Trailer Plans
Utility trailers are compact flatbed trailers designed to transport various items. From hauling construction materials and moving equipment, to customizing them for different work tasks - whatever they may be! Before making your decision on which plan for a trailer to use, be sure to consider its weight capacity as this will ensure its safe support of whatever load will be transported on it.
There are multiple approaches to building a utility trailer. Starting from scratch or purchasing a kit with all the parts and pieces can both work, depending on your construction method choice. Once you decide, gathering all necessary tools and materials should follow next. Utility trailer plans may be found online for guidance in following their plans to assemble your trailer.
Utility trailers are generally easy and straightforward to assemble, typically consisting of a bed, hitch, tongue, axle with wheels and taillight frame - components you can find easily at hardware stores - plus optional extras like drop floors or water tanks depending on their size.
To determine the appropriate load capacity of a trailer, it's important to first consider both its weight and dimensions of cargo. Trailer load capacities are usually expressed either as gross vehicle weight rating (GVWR) or payload capacity; respectively. When selecting your trailer it is wise to select one with a higher GVWR than what your load weighs so as to ensure safe transport of it.
These plans are straightforward and can be completed even by novice builders using basic tools. All plans include fully sized drawings in both inches and millimeters; additionally, DXF files enable CNC laser/plasma/waterjet cutting of brackets/mounts and sheet metal parts allowing you to customize your trailer precisely according to your exact specifications; all while meeting road safety regulations ensuring registration easily.
Dump Trailer Plans
When buying a dump trailer, there are various considerations you must keep in mind. First and foremost is how it will be used; this will determine which features such as short or long tongue and tilting bed you require. Also take note of its axle load-bearing capability - axles attaching wheels vary in weight; for heavier materials a heavier-duty trailer may be in your best interests.
Another key consideration for selecting a trailer is its environment of use. Make sure that it can withstand rough terrain and conditions that might arise during its journey, such as working in rocky environments. When purchasing this type of trailer, ensure it comes equipped with durable hydraulics and axles.
Some dump trailers feature removable sides, which can come in handy if you plan on hauling materials too large to fit inside their beds. You can also purchase side extensions if you need to increase the height of your walls.
Standard dump trailer wall height is 24 inches; however, for extra space you can have one custom-built with higher walls if required. This extra room can prove especially helpful if hauling cargo that requires secure transport.
Based on your cargo type and what it entails, a longer tongue might also be necessary. While shorter tongues allow faster turning ability but cannot carry as much, long tongues offer increased turning power while simultaneously being capable of holding larger loads.
Beginners might find it advantageous to purchase a trailer kit which contains all of the parts they'll need for their project, saving both time and money by eliminating individual purchases of parts. Most trailer kits also come complete with construction plans as well as lists of tools and materials.
Tow Dolly Plans
If you need a way to transport your vehicle around town, a tow dolly may be just what's needed. These units are great for moving cars and small trucks easily over short distances - however if your travels exceed 10 miles then a trailer would probably be more appropriate.
Tow dollies are typically constructed out of aluminum or steel and typically feature a powder-coated finish to protect against damage. Some come equipped with built-in brake systems so there's no need to purchase and install an additional braking system for your vehicle, while some even feature folding designs for easier storage.
Before selecting a tow dolly for your car, ensure it has an appropriate weight capacity. At least as much weight should be supported as is carried by the vehicle itself to prevent overloading and potential damage; some tow dollies boast weight capacities up to 5,300 lbs which should cover most car models easily.
Another key consideration when purchasing a tow dolly is how often it will be used. If you anticipate transporting vehicles regularly, flatbed trailers provide more space than their counterparts for transporting multiple cars at once.
Before purchasing a tow dolly, it is wise to check its clearance. Certain tow dollies may dredge under vehicles and cause irreparable damage to body kits, bumpers and undercarriage parts of vehicles if allowed to drag under. Repairing these types of dent may prove challenging; therefore it is imperative that your vehicle meets the clearance requirements prior to making a decision.
RV tow dollies come in two primary varieties: mounted front wheels and center pivot. Both styles offer their own set of advantages; ultimately it comes down to personal choice; some experienced RVers swear by one style while others opt for another; which one you select should depend on the conditions under which you will most frequently drive; also make sure its brakes can support the weight of your vehicle.
Car Hauler Plans
When searching for the ideal trailer to transport your car, safety is both the priority and an affordable consideration. A quality trailer should be constructed from top quality materials and assembled precisely. Furthermore, it must be capable of accommodating both vehicle weight as well as trailer weight - this will help to protect both from being damaged on the road while remaining easily operable and maintainable.
One of the best ways to secure your trailer is to install steel cross members. They should be placed near each axle to help prevent swaying of the car, made from square tubing with at least 2 inch thickness. If unsure, measure an existing trailer to get an idea of its dimensions.
Consideration should also be given to the length of the trailer tongue, which should reach your towing vehicle's ball hitch for easy maneuvering of your trailer. If unsure of its measurements, consult a professional for advice.
At last, you must determine axle placement on your trailer. To do this, take measurements from hub face to backside of tire; subtract 8 inches to determine width; cut two-by-six pressure-treated lumber as required and weld to frame.
Once your frame has been assembled, you can begin working on its axles. To do this, a lug nut wrench and jack are essential. First remove any lug nuts that might be blocking access to axles; then use a jack to raise them until they're parallel with the ground before welding spring hangers to each axle.
If you plan to transport an expensive vehicle, it is smart to invest in a trailer with a higher gross vehicle rating (GWVR). This will ensure its safe transport without damage while also saving money in the long run.
